Oem Fl820s New Motorcraft Fl820s Oil

Product Description:

Specification:

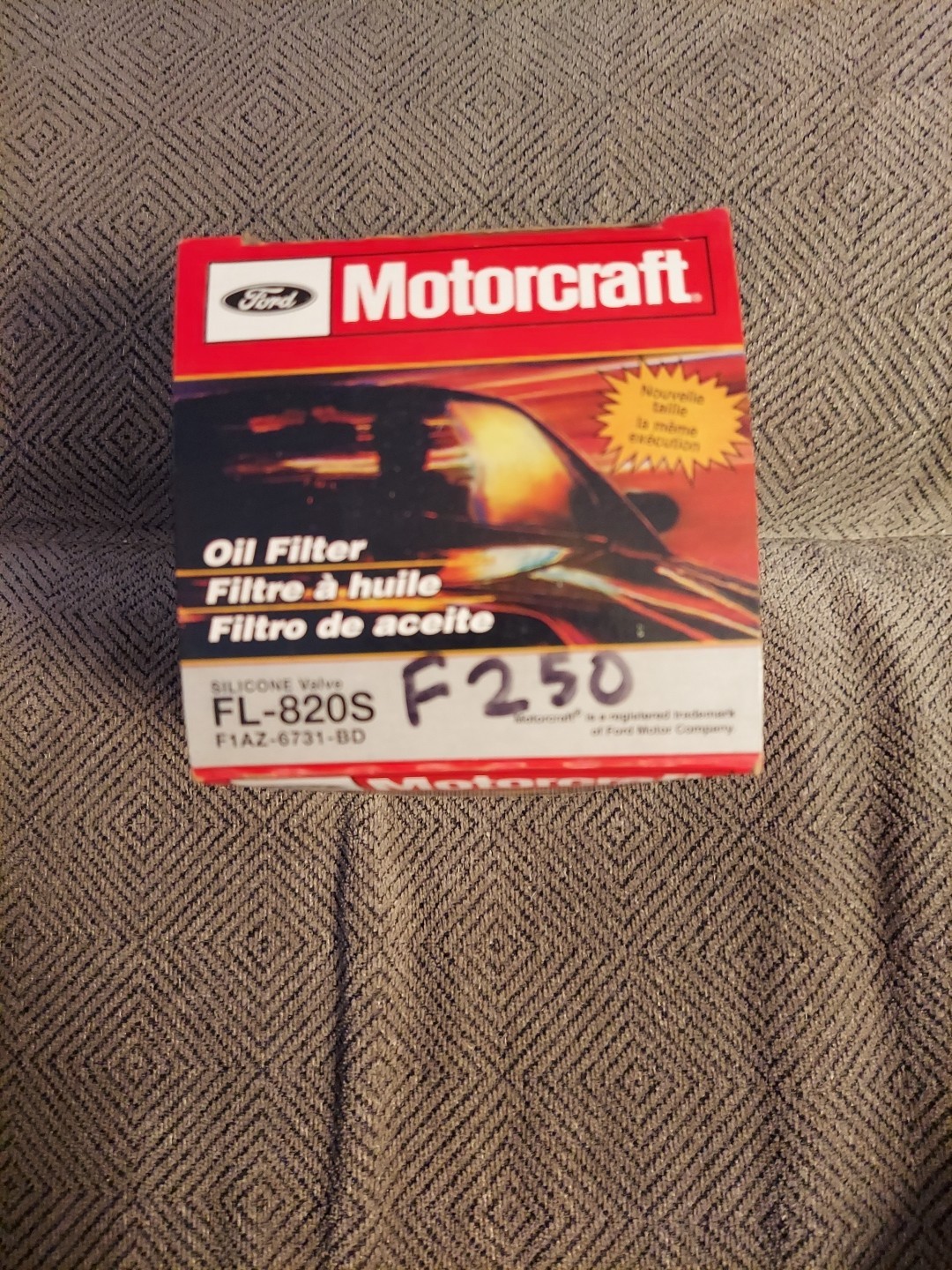

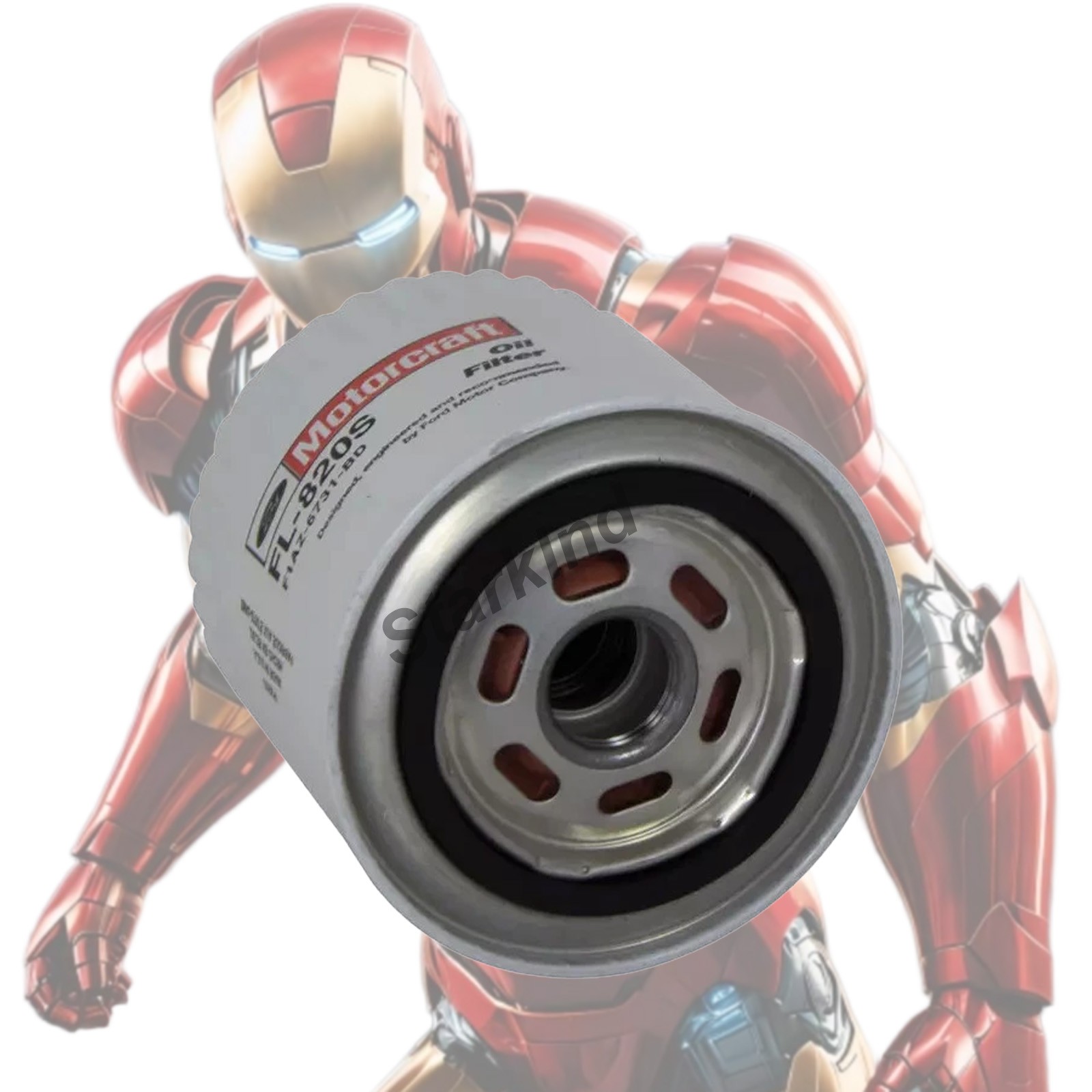

 Motorcraft FL-820S Oil Filters Case of 12 F1AZ-6731-BD Bulk Pack

Details:

Brand and Model

Original Brand: Motorcraft

Model: FL-820S

Applicable Vehicle Models

Ford

Pickup Series: F-150 (1997-2014), F-250 Super Duty (1999-2021), F-350 Super Duty (1999-2021), F-450/F-550 (2000-2019), F-650/F-750 (2012-2021), etc.

SUV/Sedan Series: Escape (2001-2007), Explorer (1996-2010), Expedition (1997-2014), Five Hundred (2006), Mustang, etc.

Commercial Vehicle Series: F53/F59 Chassis (2008-2019)

Lincoln

Town Car (2004), Navigator, etc.

Mercury

Grand Marquis, etc.

Product Type

Type: Full-flow spin-on oil filter, suitable for regular filtration in the engine lubrication system.

Materials

Filter Media

Main material: A blend of cellulose and polyester, which enhances high-temperature resistance and filtration efficiency (filters 80% of particles larger than 20 microns).

Some brands (e.g., Motorcraft) use silicone-based anti-drainback valves, which can withstand extreme temperatures ranging from -75°F to 450°F and prevent dry friction during cold starts.

Housing

Material: Galvanized steel plate, with an anti-rust coating on the surface for high compressive strength.

The outer side of the housing is equipped with anti-slip grooves, facilitating manual or tool-assisted removal.

Structural Features

Bypass Valve Design

Built-in pressure relief valve with an opening pressure of 12-18 psi (approximately 0.8-1.2 bar). When the filter is clogged or the oil thickens at low temperatures, it ensures unfiltered oil flows directly into the engine to avoid lubrication interruption.

The valve body position is optimized to reduce the risk of sediment entering the engine.

Anti-Drainback Valve

A silicone-based one-way valve prevents oil from flowing back to the oil pan when the engine is shut down, ensuring immediate oil supply during the next startup.

Filter Element Structure

Pleated filter element design increases the filtration area, improves dirt-holding capacity, and extends service life.

The center tube adopts a reinforced steel structure to withstand high-pressure impacts.

Sealing Performance

The end cap and filter element are sealed with hot-melt adhesive to prevent bypass leakage; the housing and base use a crimping process to ensure no oil leakage under high pressure.

Installation Requirements

Pre-Installation Preparation

Ensure the vehicle engine has cooled down, drain the old oil, and remove the old filter.

Clean the surface of the filter mounting seat to ensure no residual debris or old sealing rings remain.

Sealing Ring Treatment

Apply a small amount of clean oil to the sealing ring of the new filter to prevent seal failure due to dryness during installation.

Tightening Torque

After manually tightening the filter until the sealing ring contacts the mounting seat, use a tool to tighten it an additional 1/4 to 1/2 turn (specifics shall be in accordance with the vehicle manual, usually 20-30 N・m).

Some vehicle models require a dedicated filter wrench (e.g., a bowl-shaped wrench with anti-slip threads).

Startup Inspection

After starting the engine, check if the oil pressure indicator light goes out and inspect for oil leakage around the filter.

Package:

 Motorcraft FL-820S Oil Filters Case of 12 F1AZ-6731-BD Bulk Pack
